M107

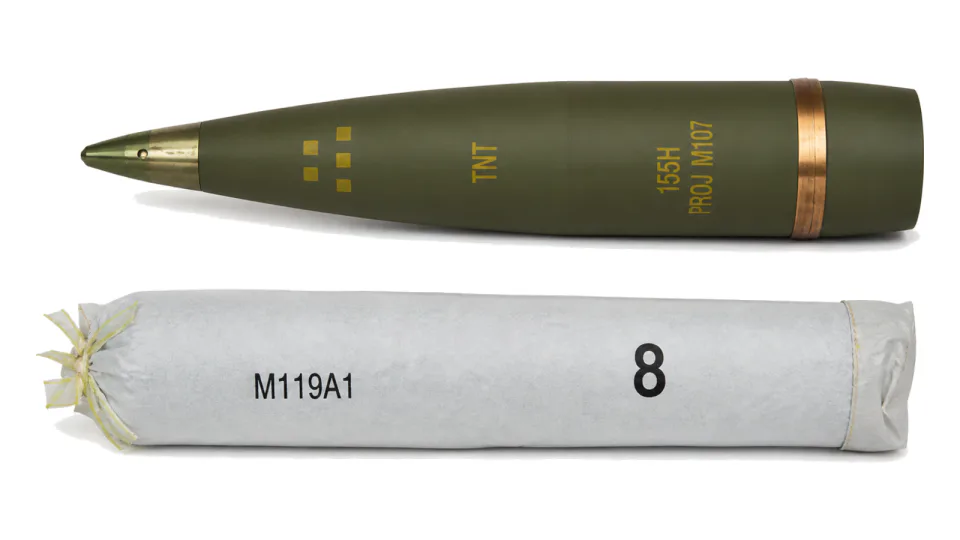

155 mm HE round M107 with propellant charge M119A1
Separate-loaded 155 mm HE round pairing the M107 projectile with the M119A1 charge for M109A1 and M198 howitzers.
Pia huandikwa: 155

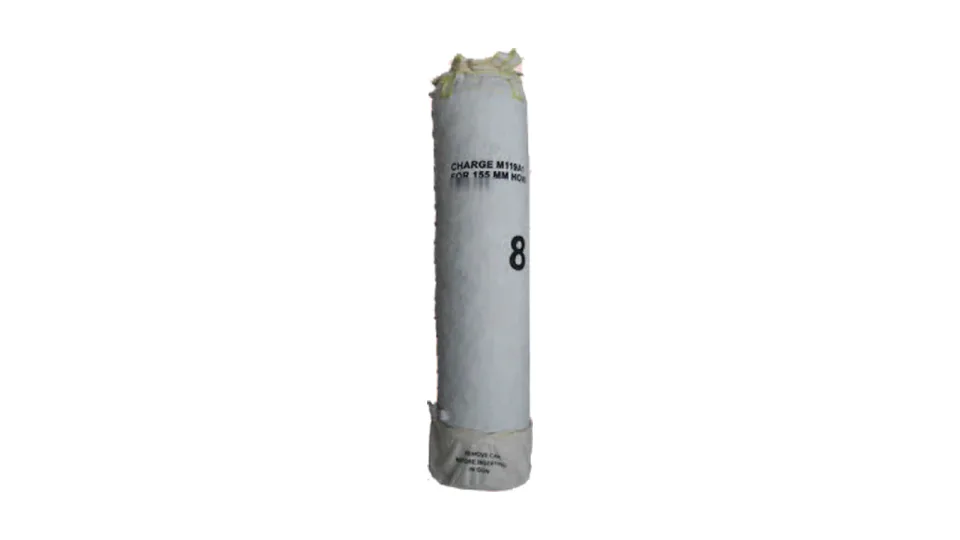

Onyesha 155 mm HE round M107 with propellant charge M119A1, mwonekano wa 1 kati ya 2Onyesha 155 mm HE round M107 with propellant charge M119A1, propellant charge M119A1
Panua 155 mm HE round M107 with propellant charge M119A1Panua 155 mm HE round M107 with propellant charge M119A1, propellant charge M119A1
Vipimo
| Projectile weight | 43.1 kg (tabular) |
|---|---|
| Explosive charge | 6.72 kg TNT |
| Propellant charge weight | 9 kg |
| Projectile length with fuze | 702 mm |
| Muzzle velocity | 684 m/s (M109A1/M185); 690 m/s (M198/M199) |
| Maximum range | 18100 m (M109A1/M185); 18270 m (M198/M199) |
| Mean maximum pressure of powder gases | <= 2060 bar (M109A1/M185); <= 2170 bar (M198/M199) |
| Fuze | UTIU M02P1, superquick or delay action |
| Primer | KT M82P2 |
| Operating temperature | -30 to +50 deg C |
| Weapon compatibility | 155 mm M109A1/M185 and M198/M199 howitzers |
Data zote zimetolewa kwa madhumuni ya taarifa; vipimo vya mwisho huainishwa katika mkataba. Karatasi kamili za data za kiufundi hutolewa kwa ombi linalotaja mtumiaji wa mwisho.
