M10
122 mm HE ER-BB shell M10
Extended-range base-bleed 122 mm high-explosive projectile for the D-30J howitzer, maximum range 21500 m.
- Maximum range
- 21500 m
- Muzzle velocity
- 715 m/s (max)
- Fuze
- UTIU M02
Kaliba
122 mm
Vipengee vinavyosambazwa katika kaliba 122 mm, kila kimoja kikiwa na ukurasa wake wenye data za kiufundi zinazopatikana, ili kipengee cha zabuni kilinganishwe kwa msimbo wa bidhaa kabla ya mawasiliano kuanza. Kotesheni hutolewa kwa watumiaji wa mwisho wa serikali na taasisi zenye leseni, chini ya leseni ya kusafirisha bidhaa nje ya nchi iliyotolewa na serikali na Cheti cha Mtumiaji wa Mwisho kilichothibitishwa.
- Vipengee vya bidhaa
- 13
- Aina za risasi
- 5
- Maeneo
- 3
Aina zinazopatikanaHEKuangaziaNyingineMazoeziMoshi
Vipengee vya bidhaa
M10
122 mm HE ER-HB shell M10
Extended-range hollow-base 122 mm high-explosive projectile for the D-30J howitzer, maximum range 18600 m.
- Maximum range
- 18600 m
- Muzzle velocity
- 750 m/s (max)
- Fuze
- UTIU M02
462A1
122 mm HE shell 462A1
Separate-loaded 122 mm TNT-filled high-explosive round for D-30, D-30J and 2S1, fired with reduced or full charge.
- Maximum range
- 12800 m (reduced charge); 15000 m (full charge)
- Muzzle velocity
- 565 m/s (reduced charge); 690 m/s (full charge)
- Fuze
- UTIU, M72 B1

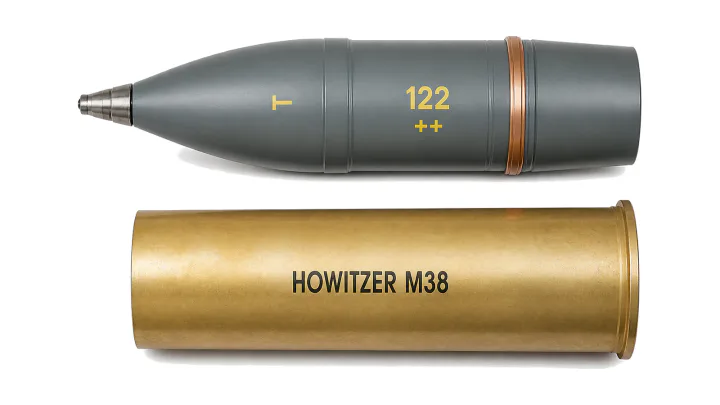

TF-462A1
122 mm HE shell TF-462A1 for howitzer M38
Separate-loaded 122 mm high-explosive round in the short M38 cartridge case, maximum range 11800 m.
- Maximum range
- 11800 m
- Muzzle velocity
- 515 m/s
- Fuze
- UT-PE M87, impact, superquick and delay action
—
122 mm blank (salute) round
A 122 mm blank round made up of a cartridge case M78 loaded with a propellant charge and igniter and fired by a gun primer KT M71, used to simulate live firing during manoeuvres, exercises and tactical operations and for gun salutes.
- Calibre
- 122 mm
- Round length
- max 447 mm
- Round mass
- 4.41 kg
S-463
122 mm illuminating shell S-463
Separate-loaded 122 mm parachute illuminating round with electronic time fuze, min 700000 cd for min 45 s.
- Maximum range
- 12400 m
- Muzzle velocity
- 562 m/s
- Filling
- 0.9 kg illuminating composition
M60
122 mm smoke shell WP M60
Separate-loaded 122 mm white phosphorus smoke round for D-30, D-30J and 2S1, maximum range 12800 m.
- Maximum range
- 12800 m
- Muzzle velocity
- 565 m/s
- Filling
- approx. 3.3 kg white phosphorus (WP)
SOKO
122 mm truck-mounted self-propelled howitzer SOKO
A 122 mm gun-howitzer integrated on a 6x6 truck chassis with armour protection against small arms fire and fragmentation, direct and indirect fire capability, a 7.62 mm auxiliary machine gun, smoke pot dischargers and a resting system of four foldable hydraulically operated spades, able to fire all standard 122 mm ammunition including laser-guided projectiles.
- Main armament
- Howitzer 122 mm
- Auxiliary armament
- Machine gun 7.62 mm
- Additional equipment
- Smoke pot dischargers (for masking)
GRAD
122 mm HE artillery rocket GRAD
Unguided 122 mm high-explosive rocket with twin combustion chamber motor and drag-increasing aerodynamic ring, range 20.1 km.
- Calibre
- 122 mm
- Length
- 2875 mm
- Total mass
- 66 kg
MLRS 122
122 mm container-type multiple launch rocket system
Container-type 122 mm multi-barrel rocket launcher on a 4x4 vehicle, with 2 x 20 reusable launch tubes, ballistic computer and GPS/INS orientation.
- Rate of fire
- 0.4 s to 2 s between two rocket launches; 10 to 40 s for 1 container, 20 to 80 s for 2 containers
- Calibre
- 122 mm
- Launching module
- 2 x 20 launch containers with reusable 122 mm steel launching tubes
GRAD M
122 mm extended-range HE artillery rocket GRAD M
Unguided 122 mm high-explosive rocket with single star-shaped grain motor, extending range to 27.8 km with the same 19.1 kg warhead.
- Calibre
- 122 mm
- Length
- 2875 mm
- Total mass
- 69.3 kg
GRAD 2000
122 mm long-range HE artillery rocket GRAD 2000
Unguided 122 mm high-explosive rocket with single cylindrical grain motor reaching 38.4 km at 50 deg and 40 km at the optimal 55 deg elevation.
- Calibre
- 122 mm
- Length
- 2925 mm
- Total mass
- 68.3 kg

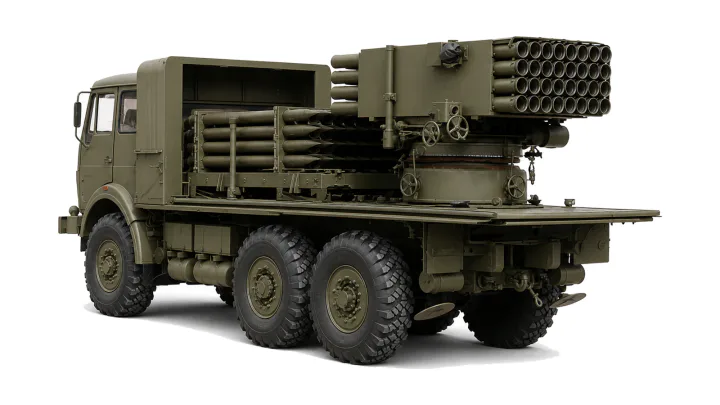

GRAD
122 mm self-propelled multi-tube rocket launcher GRAD
Self-propelled 122 mm multi-tube rocket launcher on a 6x6 truck chassis for surface targets in the depth of the enemy.
- Maximum range
- 20.1 km with GRAD; 27.8 km with GRAD M; up to 40 km with GRAD 2000
- Calibre
- 122 mm
- Rocket types fired
- GRAD, GRAD M and GRAD 2000
Data zote zimetolewa kwa madhumuni ya taarifa; vipimo vya mwisho huainishwa katika mkataba. Karatasi kamili za data za kiufundi hutolewa kwa ombi linalotaja mtumiaji wa mwisho.
