LAZAR III P

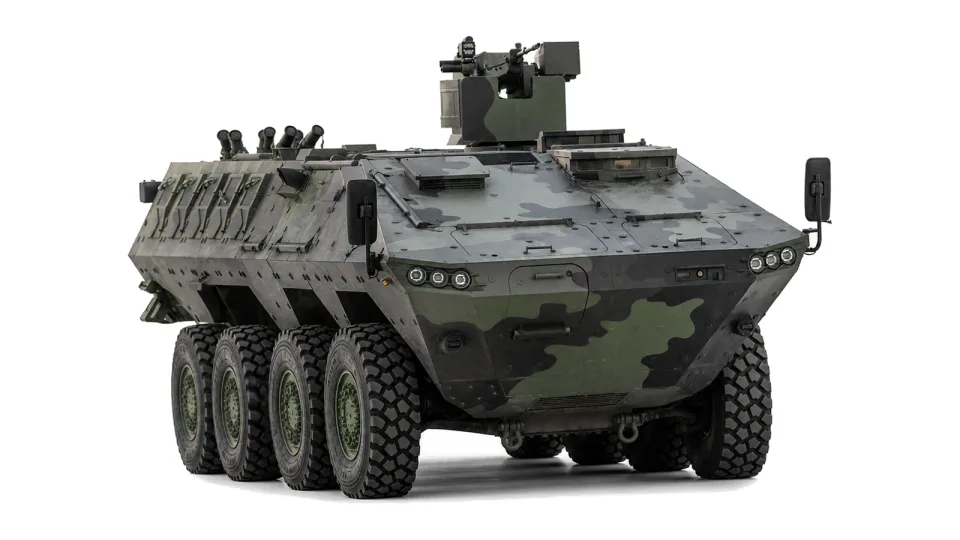

LAZAR III P infantry combat support vehicle
Wheeled infantry combat support vehicle of 24 to 26 t combat weight, 110 km/h maximum speed and 1.6 m fording capability, armed with a turret-mounted twin 30 mm cannon and four NOVA 145 anti-tank missiles to give fire support close to the line of battle.
يُكتب أيضاً: 30

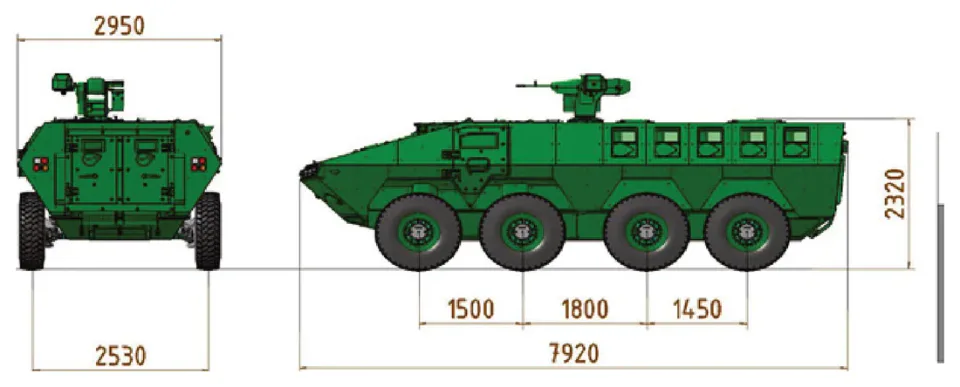

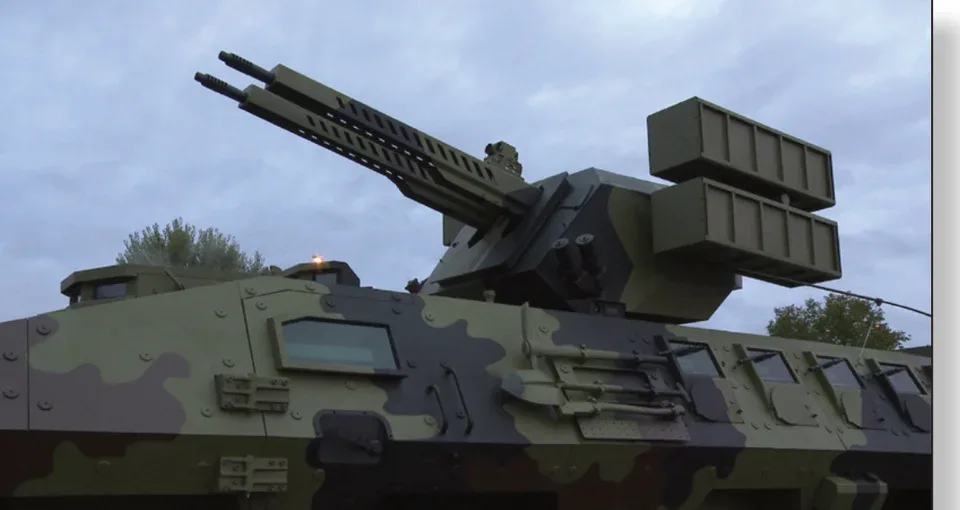

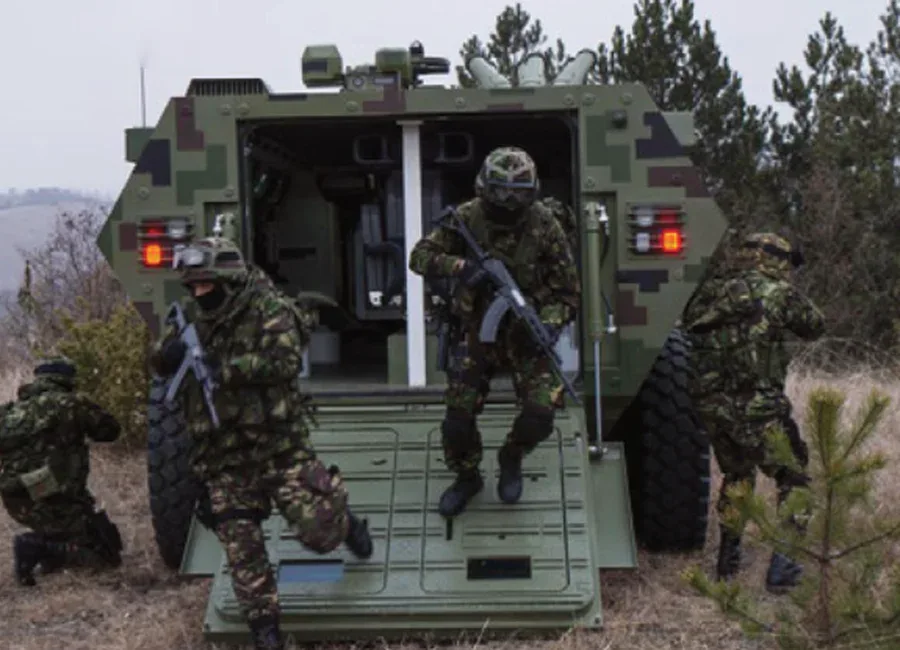

عرض LAZAR III P infantry combat support vehicle، المنظر 1 من 4عرض LAZAR III P infantry combat support vehicle، 30/2 mm turret with NOVA 145 launchersعرض LAZAR III P infantry combat support vehicle، general arrangement, dimensions in mmعرض LAZAR III P infantry combat support vehicle، rear ramp down
تكبير LAZAR III P infantry combat support vehicleتكبير LAZAR III P infantry combat support vehicle، 30/2 mm turret with NOVA 145 launchersتكبير LAZAR III P infantry combat support vehicle، general arrangement, dimensions in mmتكبير LAZAR III P infantry combat support vehicle، rear ramp down
المواصفات
| Length | 7.92 m |
|---|---|
| Width | 2.95 m |
| Height (without turret) | 2.32 m |
| Clearance | 0.42 m |
| Approach angle | 45° |
| Departure angle | 38° |
| Wheel base | 2.53 m |
| Spacing between axles | 1.5 m - 1.8 m - 1.45 m |
| Engine space | 5 m³ |
| Crew space | 15 m³ |
| Combat weight | 24-26 t depending on mission and protection |
| Max. weight | 28 t |
| Maximum speed | 110 km/h |
| Gradient | 60 % |
| Side slope | 30 % |
| Vertical obstacles | max 0.55 m |
| Trench | 2 m |
| Turning radius | 11.5 m |
| Fording | 1.6 m |
| Armament | Turret-mounted 30/2 mm RCWS and 4 anti-tank missiles NOVA 145 |
| RCWS 30/2 mm - caliber | 30 mm, twin-barrel cannon (30 x 210 mm) |
| RCWS 30/2 mm - loading | Automatic loader, 220 rounds (110 per weapon) |
| RCWS 30/2 mm - muzzle velocity | 1000 m/s |
| RCWS 30/2 mm - rate of fire | 500 rds/barrel (1000 rds combined) |
| RCWS 30/2 mm - laying | Electric; traverse n x 360°, elevation -7° to +50° |
| RCWS 30/2 mm - effective range | up to 2000 m against ground targets |
| RCWS 30/2 mm - weight | 2000 kg |
| NOVA 145 - caliber | 145 mm |
| NOVA 145 - range | 8+ km |
| NOVA 145 - warhead | Shaped charge 145 mm, 6.4 kg |
| NOVA 145 - penetrability | > 1000 mm RHA with ERA |
| NOVA 145 - guidance | Mid-course INS, terminal guidance HH |
| NOVA 145 - target tracking | Via missile: LBL from 0.5 to 5 km, LAL via radio link 0.5 to 8 km |
جميع البيانات مقدمة لأغراض المعلومات؛ وتُحدَّد المواصفات النهائية بموجب العقد. تصدر أوراق البيانات الفنية الكاملة عند الطلب مقابل مستخدم نهائي محدد.
